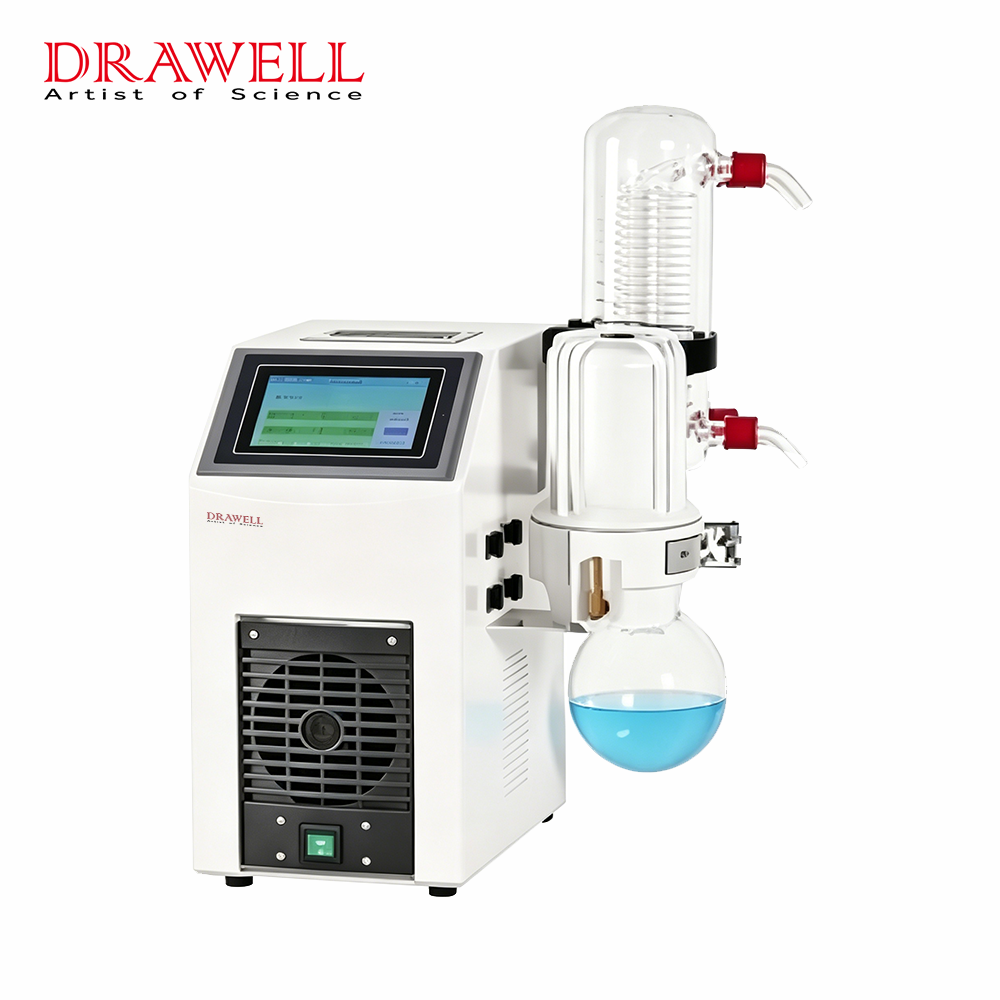

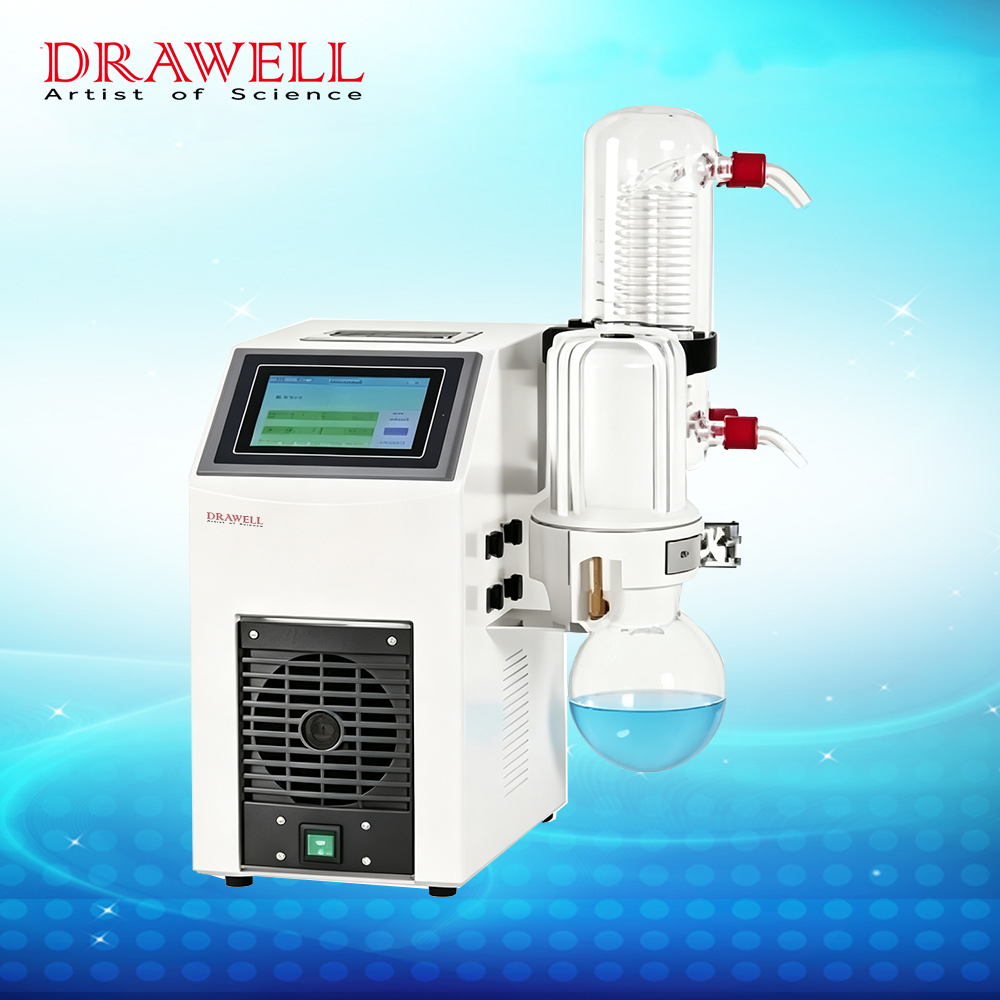

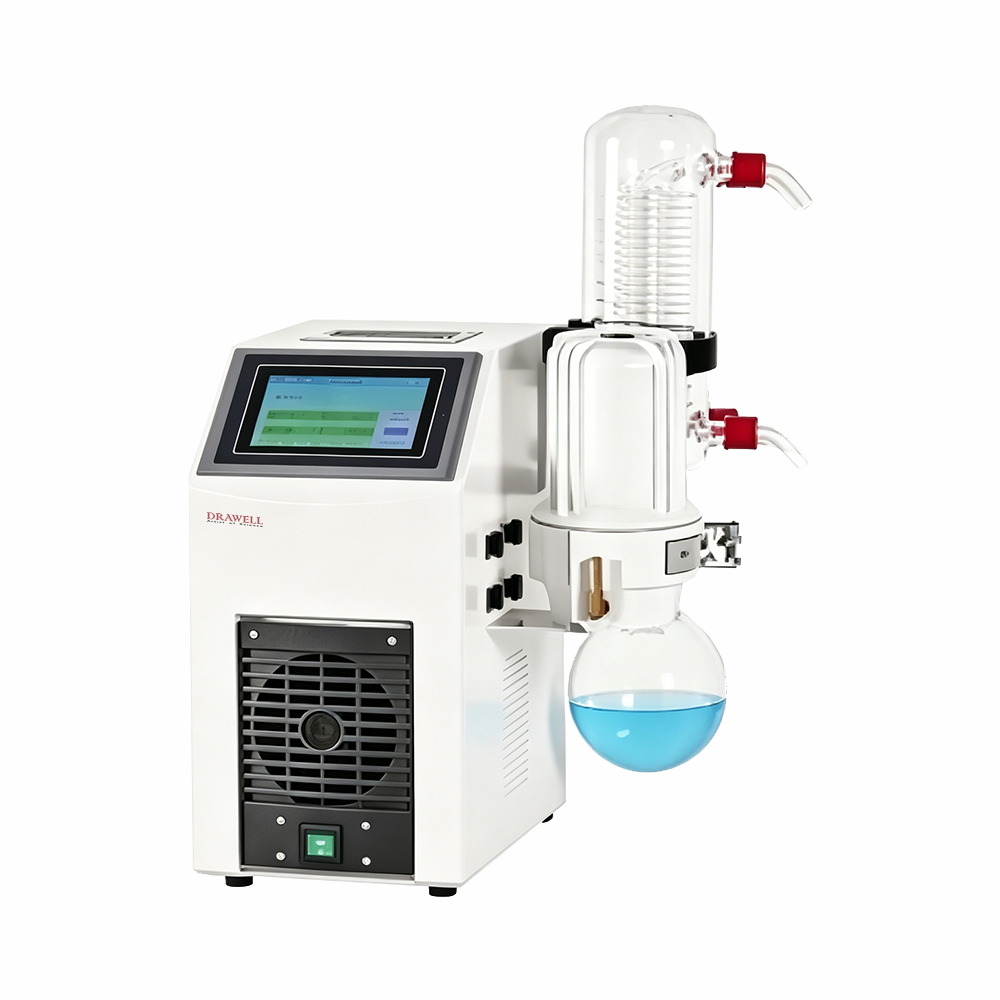

DW-GMVC-3000RM Solvent Recovery Device

<Span>Introduction</Span>
Vacuum decompression concentration, drying, distillation, rectification process; When the vacuum pump pumping speed is too fast to achieve complete recovery, the solvent recovery device is used to recycle the test material again through the condenser, and the recovered waste gas is fully adsorbed by the specially supporting activated carbon adsorption device, so that the whole process can achieve the best effect. Through the treatment of gas without pungent odor, greatly improve the laboratory environment and personal health will have a great impact, especially acid and alkaline odor. At the same time, the very precious reagent is recycled many times and can be reused.
<Span>Features</Span>
● Host: Integrated diaphragm pump integrated vacuum control system, with high control accuracy, corrosion resistance, long valve life.
● The large screen touch color LCD screen can display the detection and set vacuum, and can directly adjust the vacuum on the LCD screen
● Can be matched with imported or domestic brands of rotary evaporator, with good vacuum control vacuum controller,
connected with rotary evaporator.
● The vacuum inside the rotary evaporator can be controlled to increase the boiling point (e.g., methylene dichloride, benzene, trichloroethane, ethanol)The low recovery rate of reagents can also be carried out by the replacement of inert gas to concentrate under reduced pressure without internal oxidation and contamination.
● Can carry out 10 stages of gradient distillation program control (time and vacuum degree of the arrangement of operation), synthetic experimental chromatographic distillation, the gradual control of vacuum degree.
● Interface operation：Chinese/English system interface operation switch function.
● Vacuum controller (mbar) and (Mpa) unit switching, graph tracking query, USB interface data export.
● Optional steam temperature (-20~200℃) monitoring function.
● Point action type/one key pressure relief function.
