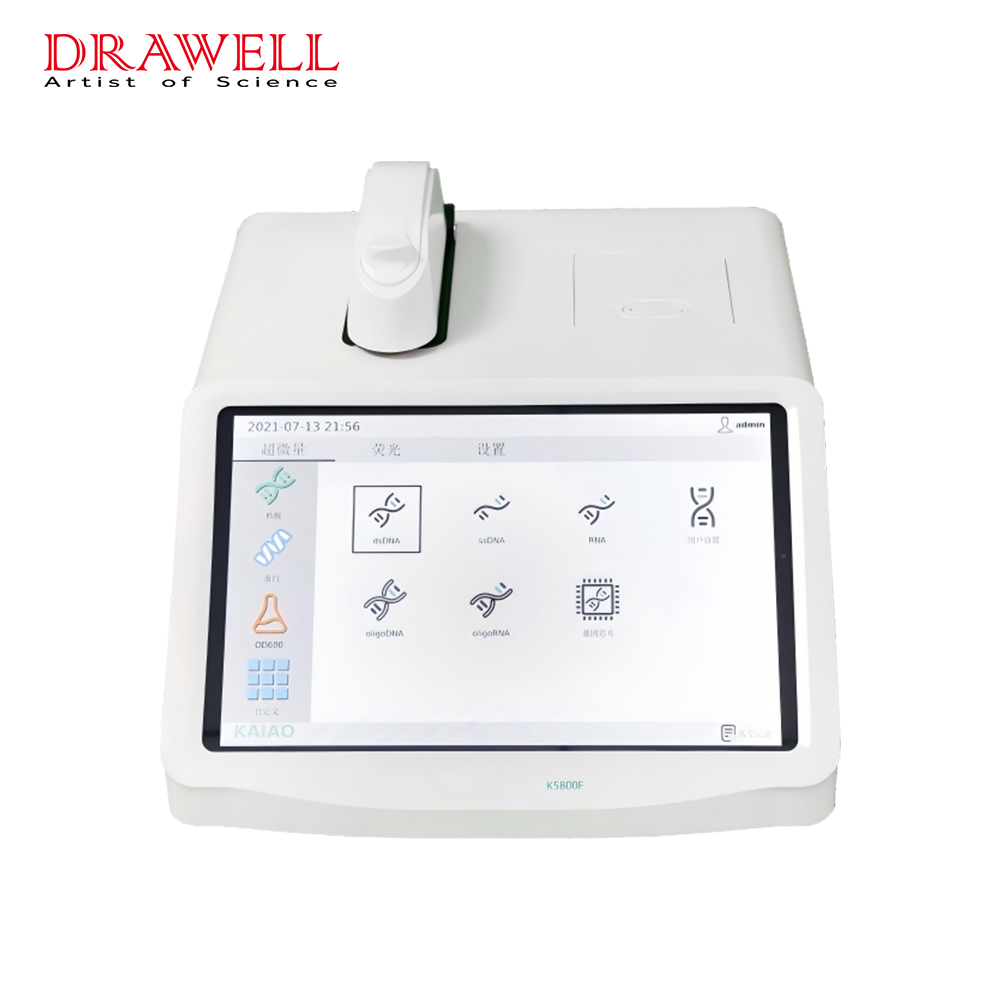

K5800F Microvolume UV-Vis Spectrophotometer

Introduction
The micro spectrophotometer has become a routine instrument in modern molecular biology laboratories. It is an instrument that conducts quantitative and qualitative analysis of substances using the spectrophotometric method, and is commonly used for nucleic acid and protein quantification, microarray, full-wavelength scanning, and quantitative determination of bacterial concentration, etc. By adding a fluorescence module to the micro spectrophotometer, it is often used for the detection of low-concentration nucleic acids and proteins, greatly expanding the detection range.

Applications
Whether in the fields of scientific research such as physics, chemistry, biology, medicine, materials science, and environmental science, or in modern production and management departments like chemical engineering, medicine, environmental testing, and metallurgy, ultra-trace ultraviolet-visible spectrophotometers have extensive and significant applications.

Advantage
(1) Five optical path automatic conversion, automatically matching the best optical path according to the sample concentration without manual setting.
(2) Long-life flash xenon lamp, with up to 10° flashes.
(3) Full wavelength mode for cuvette detection, with a detection range of 190-850nm.
(4) Cuvette temperature control function, capable of heating and cooling, 10-45℃ (±0.5℃).
(5) Internal display: 10.1-inch touch display, multi-point capacitive touch screen.
(6) Has pollutant identification function.
(7) Optional liquid column monitoring function.
(8) Operating system: LINUX system.
(9) Supported languages: Chinese, English and other multiple languages.
(10) Supports U disk data output, can be connected to Ethernet, Bluetooth, and Wi-Fi.
(11) Can be equipped with a printer, with an internal printer for direct printing of test results.
(12) Has user login and user permission management functions.
(13) Can be equipped with an audit trail function.
Features
(1) Output port: Equipped with 2 USB-A interfaces, 1 TypeC interface, 1 HDMI interface, and 1 Ethernet port, enabling connection and use with various devices such as mice, keyboards, desktop computers, etc.
(2) Has a one-click export function for spectral diagrams of scanning and detection results.
(3) Can export various forms of detection reports.
(4) Fluorescence detection range: 5 orders of magnitude.
(5) Fluorescence detection has a customizable standard curve module, allowing for more flexible compatibility with more reagent kits and experimental methods.
(6) Fluorescence detection has a kinetic module, enabling fluorescence kinetic detection and drawing kinetic curves.
(7) The colloidal gold module has a unique automatic peak detection function, which can automatically find the characteristic wavelengths of different particle sizes of colloidal gold.
(8) The standard curve has multiple fitting methods to meet diverse experimental needs.
