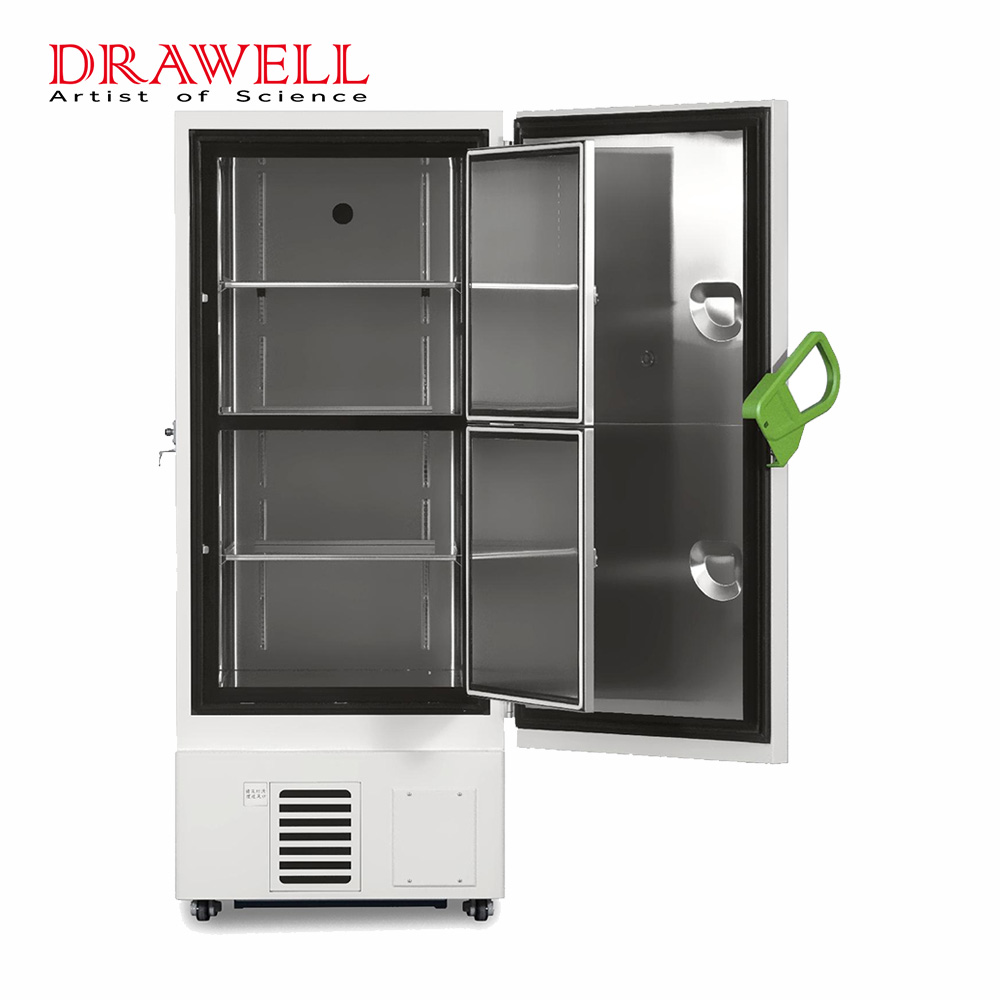

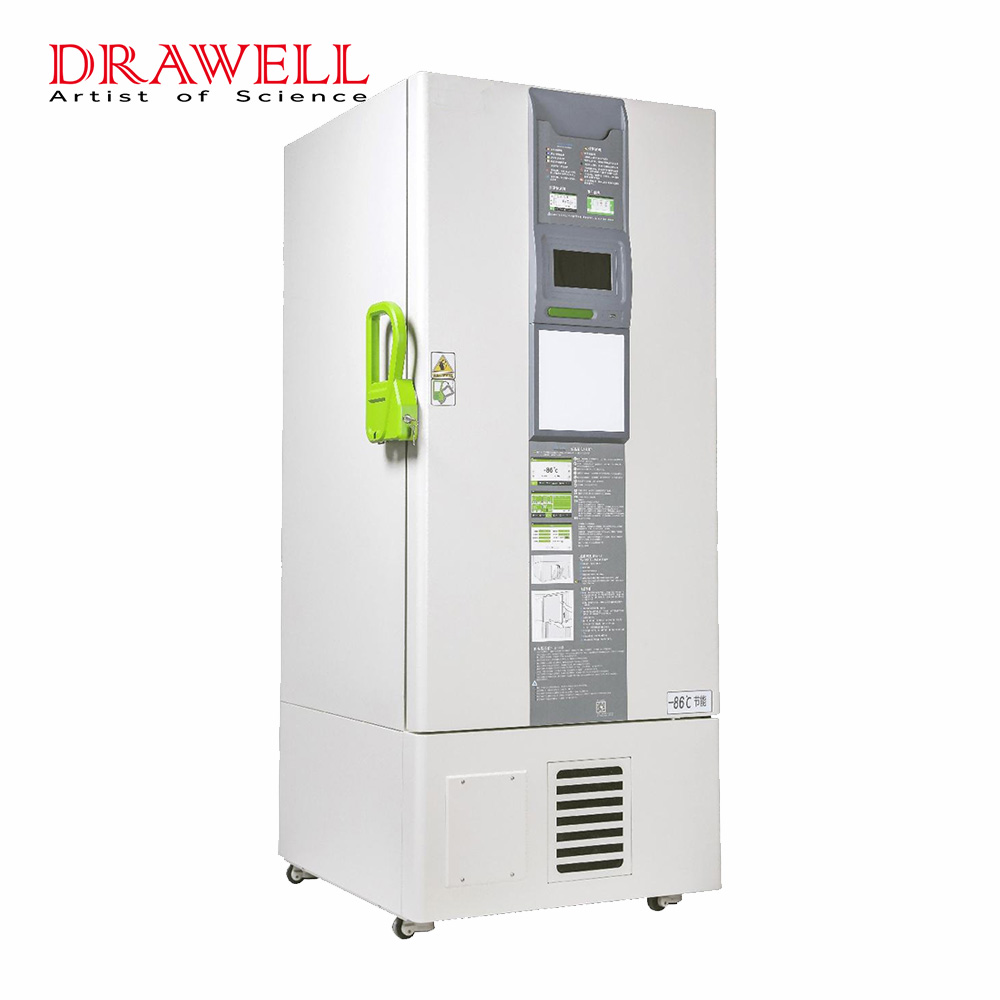

Ultra-low temperature Freezer MDF-86V338
Packing Size:94*107*213cm
Gross Weight:310kg
Packing Material:Wooden Case
Liquid/Battery/Motor:Yes
HS Code:8418500000
Features
-Two-compressor cascade refrigeration system specially designed for cryogenic applications.
-Wide available voltage range: 198V~242V.
-Wide temperature range :10°C〜32°Ccanreach -86°C.
-Accurate Temperature control technologyto make the temperature maintain -60C~-86Cand accuracy 0.1 °C.
-Removable heat exchanger, almost all of the relevant components of the cooling components could be maintenance and replacement.
-Realize historical temperature curve query and download
-Independent switch, standard USB port, easy to download data
-HC refrigeration system, energy saving 50%
-VIP II PLUS technology, special narrow design for entering elevators.
Safety
-Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 72 hours without AC power.
-Visual and audible alarm system:High/low temperature,Sensor error, Thermostat failure alarm,power failure alarm,door switch, ambient temperature alarm, condenser failure alarm, filter check alarm, voltage abnormal alarm, low battery alarm
-Power failure protection: turn on delay of the cooling system when power failure,restart delay protection.
-Keyboard lock, password protection to avoid set parameter randomly.
Humanized design
-4 casters with stopper for easy moving and fixation.
-2 Standard 25mm test hole for easy connecting to temperature monitoring systems.
-3 adjustable shelves for easy storing.
-Visual and audible alarm and all alarm can be through reserved for remote alarm port remote alarm
-Removable condenser front cover convenient for cleaning and maintenance.
-With the function of hand-written artboard, convenient for customers to record temporary information.
-With A4 paper slot function, convenient for customer management and equipment related information
Special
Removable heat exchanger
Wide voltage design: 198V~242V available
Build-in back-up battery: 72 hours power failure alarm
9 visual and audible alarms
