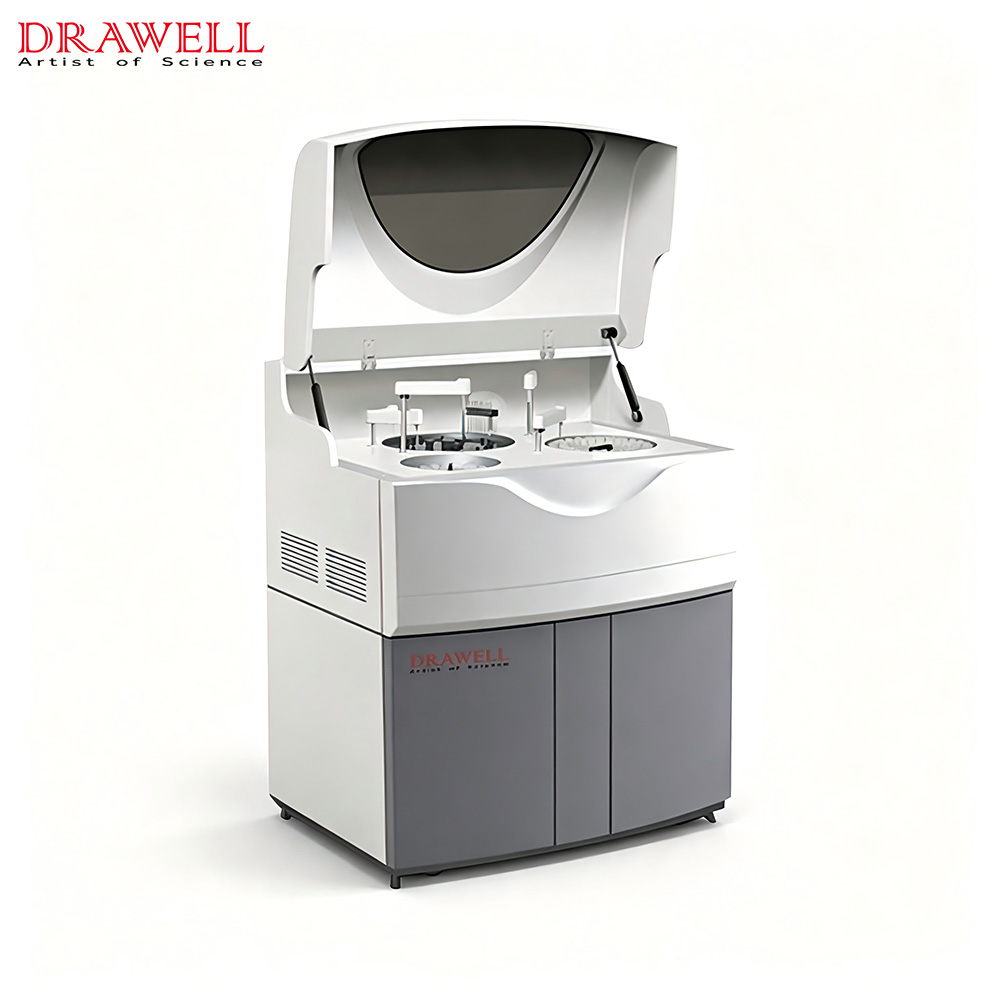

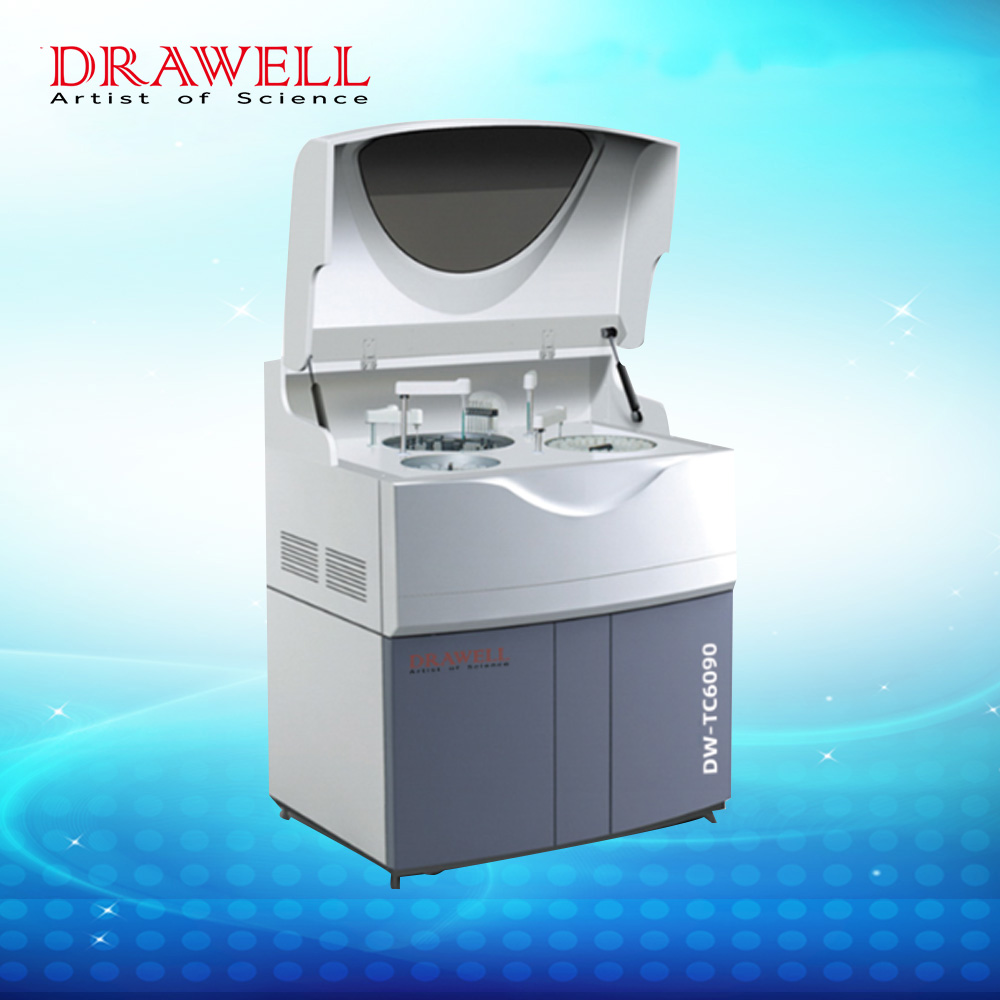

DW-TC6090 Automatic Chemistry Analyzerer

System Functions
- Fully automatically, discrete, random STAT function
- Online test items: at most 40 testing items
- Throughput: 400 tests/hour
- Analysis Method: end-point, kinetic, two-point, double-reagents, double-wavelength, multi-standard etc, open to various reagents
- Data Processing: memory up to 2 million patients’ data

Sample/Reagents Handling
- Sample Position: 93 pcs (Include standard, QC, STAT positions)
- Sample volume: 2-50µl, 0.1µl step
- Sample Probe Cleaning: automatic internal & external washing
- Sample Dilution: automatic/Manual pre-dilution, with dilution ratio up to 1:100
- Reagent Position: 80 pcs (With refrigerated function, 2℃-8℃ )
- Reagent Volume: 10-500µl, 1µl step
- Reagent Probe: automatic liquid level detect, with collision protection function
- Reagent Probe Cleaning: automatic internal & external washing



Reaction System
- Reaction Cuvette: 90 pcs made of special material
- Optical Length of Cuvette: 6mm
- Reaction Volume: 200～500µl
- Reaction Time: 8-14 minutes
- Reaction Temperature: 37℃±0.1℃
- Mixing System: two independent mixing probe

Optical System
- Light Source: halogen-tungsten lamp
- Wavelength: 300-700nm, 9 wavelengths, precision ±2nm
- Spectrophotometry: rear spectrophotometry
- Test Range: 0-4.0 Abs
- Resolution: 0.001Abs

Bar-code Reader (Optional)- Bar-code reader used for sample/reagent programming

ISE Module (Optional)
- Optional 1: K, Na, Cl, Ca, PH (5 items)
- Throughput: 300 tests/hour
- Optional 2: K, Na, Cl (3 items)
- Throughput: 180 tests/hour

QC - Various QC management function and random QC insert

Control and Calibration
- Calibration: linear/nonlinear multi-points calibration
- Re-test: retest the sample automatically when the result is out of the linearity range or the sample is not sufficient
- Automatic sample dilute function

Cleaning System
- 8-step automatic washing, automatic cuvette dry function
-Water Consumption: 8L/hour

Working Condition
- Power Supply: ~100-240V, 50/60Hz, 1KVA
- Temperature: 10-35℃
- Humidity: ≤90%, no dew

Operation System-Windows XP or Windows 2000

Input and Output
- Input: RS-232 interface / keyboard / computer
- Output: multi-format printout

Dimension and Weight
- Upper cabinet: 950×710×1180mm Net Weight: 136kgs
Packing Information
- 890×1135×1400mm; G.W.: 215kgs (With plywood case)

R1 Reagent Position
- 40 pcs R1 reagent positions
- Non-stop reagents refrigerating
- Auto detect of reagent volume

R2 Reagent/Sample position
- 40 pcs R2 reagent positions
- 93 sample positions, suitable for
- primary tube abd serum cup
- Non-stop reagents refrigerating
- Auto detect of reagent volume

Sample/Reagent Probe
- Probe telflon coating technology
- Automatic liquid level detect
- Collision protection function
- Independent mixing probe
- Probe internal/external washing

Reaction Cuvettes
- 90 pcs reusable cuvettes
- Automatic blank testing for cuvette
- Dismountable, easy to replace Cuvette
- Advanced thermostat to ensure accurate test result

8-step auto cleaning System
- Automatic 8-step washing
- Automatic cuvette dry function
- Hi-tech washing station to ensure accurate test results
- With low water consumption: 8L/H

Mixing Probe
- Two independant mxing probes
- High precision mixing station
- Collision protection function
- Probe internal/external washing
- Probe telflon coating technology
- Automatic washing cuvette when start up & shut down the instrument
- Test order setting program is available to avoid carry-over
- Automatic detect reagent volume during every startup of the instrument
- Show reagent plate temperature during every startup of the instrument

Automatic Cuvette blank testing -
Automatic wash selected cuvettes -
Real-time online monitoring running status of cuvette -

- Real-time online monitoring running status of sample tray, reagent tray cuvette
- Real-time online monitoring reagents residual volume
- Real-time online monitoring waste volume

Automatic dilute and re-test when absorbance range is overrange -
Automatic dilute and re-test when linear limit is overrange -
Three modes (no dilute, autodilute and handwork dilute) are available -
Freely set the autodilute ratio and dilute water position -

- Freely set the autodilute ratio when re-testing
- “No dilute” re-testing mode is available
