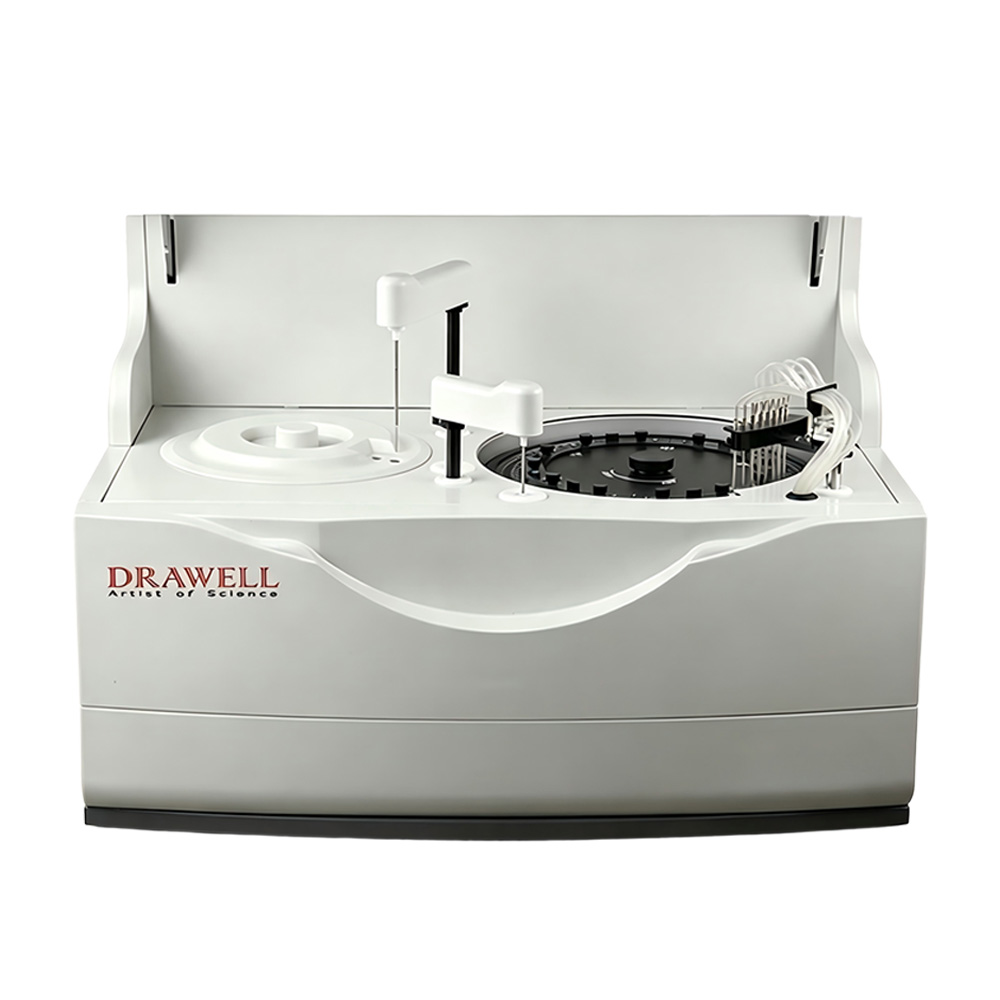

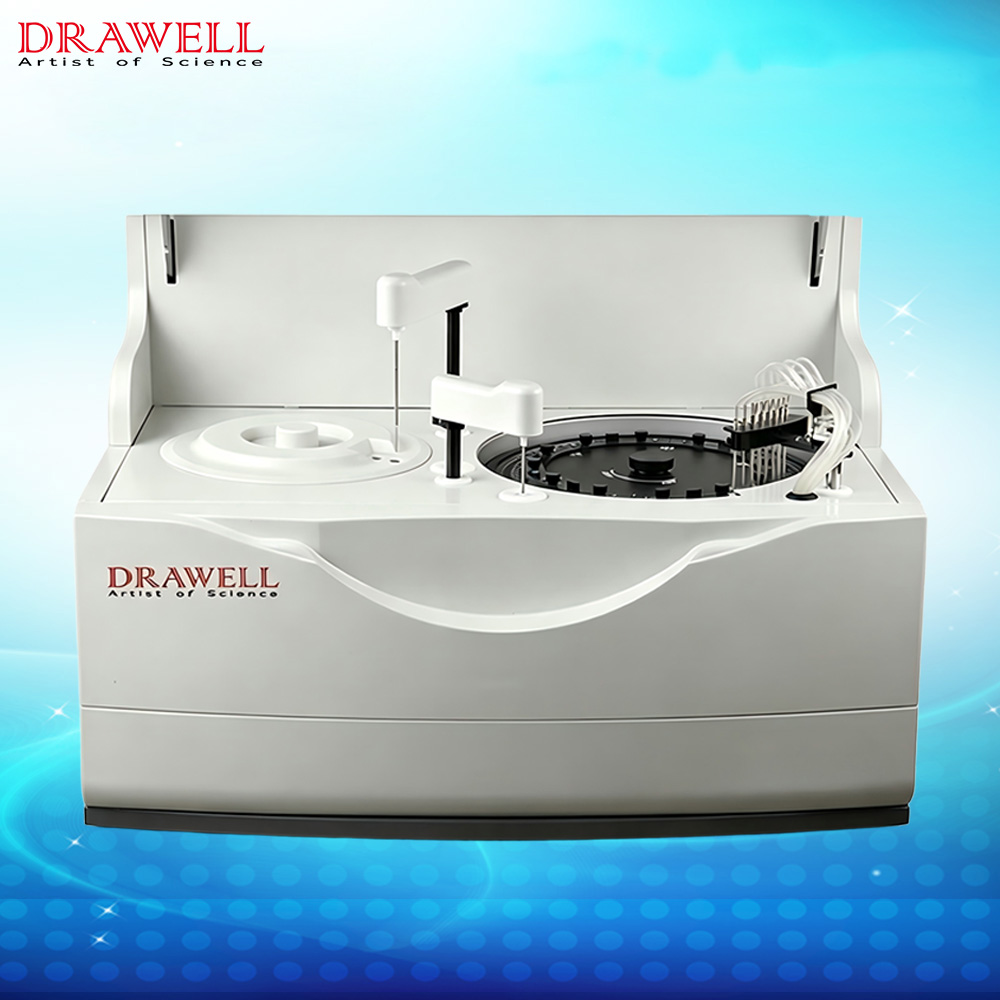

DW-TC6030 Automatic Chemistry Analyzer

System Functions
- Fully automatically, discrete, random STAT function
- Online test items: at most 40 testing items
- Throughput: 260 tests/hour
- Analysis Method: end-point, kinetic, two-point, double-reagents, double-wavelength, multi-standard etc, open to various reagents
- Data Processing: memory up to 200,000 patients’ data

Sample/Reagents Handling
- Sample Position: 40 pcs (Include standard,QC,STAT positions)
- Sample volume: 2-50µl, 0.1µl step
- Sample Probe Cleaning: automatic internal & external washing
- Sample Dilution: automatic/Manual pre-dilution, with dilution ratio up to 1:100
- Reagent Position: 40 pcs (With refrigerated function, 2℃-8℃)
- Reagent Volume: 10-500µl, 1µl step
- Reagent Probe: automatic liquid level detect, with collision protection function
- Reagent Probe Cleaning: automatic internal & external washing

Reaction System
- Reaction Cuvette: 90 pcs made of special material
- Optical Length of Cuvette: 6mm
- Reaction Volume: 200～500µl
- Reaction Time: 8-10 minutes
- Reaction Temperature: 37℃±0.1℃
- Mixing System: independent mixing probe

Optical System
- Light Source: halogen-tungsten lamp
- Wavelength: 300-700nm, 9 wavelengths, precision ±2nm
- Absorbance Range: 0～4.0Abs
- Resolution: 0.001Abs
- Spectrophotometry: rear spectrophotometry

QC
- Various QC managements, insert QC randomly; save, display & print QC chart; define different QC in advance

Calibration
- Calibration: linear/nonlinear multi-points calibration
- Re-test: retest the sample automatically when the result is out of the linearity range or the sample is not sufficient

Cleaning System
- 8-step automatic washing, automatic cuvette dry function
- Water Consumption: 4L/hour

Working Condition
- Power Supply: ~100-240V, 50/60Hz, 1KVA
- Temperature: 10℃-35℃
- Humidity: ≤90%, no dew

Operation System
Windows XP or Windows 2000

Input and Output
- Input: RS-232 interface / keyboard / computer
- Output: multi-format printout

Dimension and Weight
- Upper cabinet: 700×650×530mm Net Weight: 62kgs
- Bottom cabinet: 700×705×620mm Net Weight: 47kgs

Packing Information
- Adopts plywood case
- Upper Cabinet: 830×880×732mm G.W.: 95kgs
- Bottom Cabinet: 800×880×855mm G.W.: 74kgs

Sample/Reagent Position
- 40 pcs sample position
- 40 pcs reagent position
- Reagents refrigerated function
- Primary tube and blood serum cup can be used
