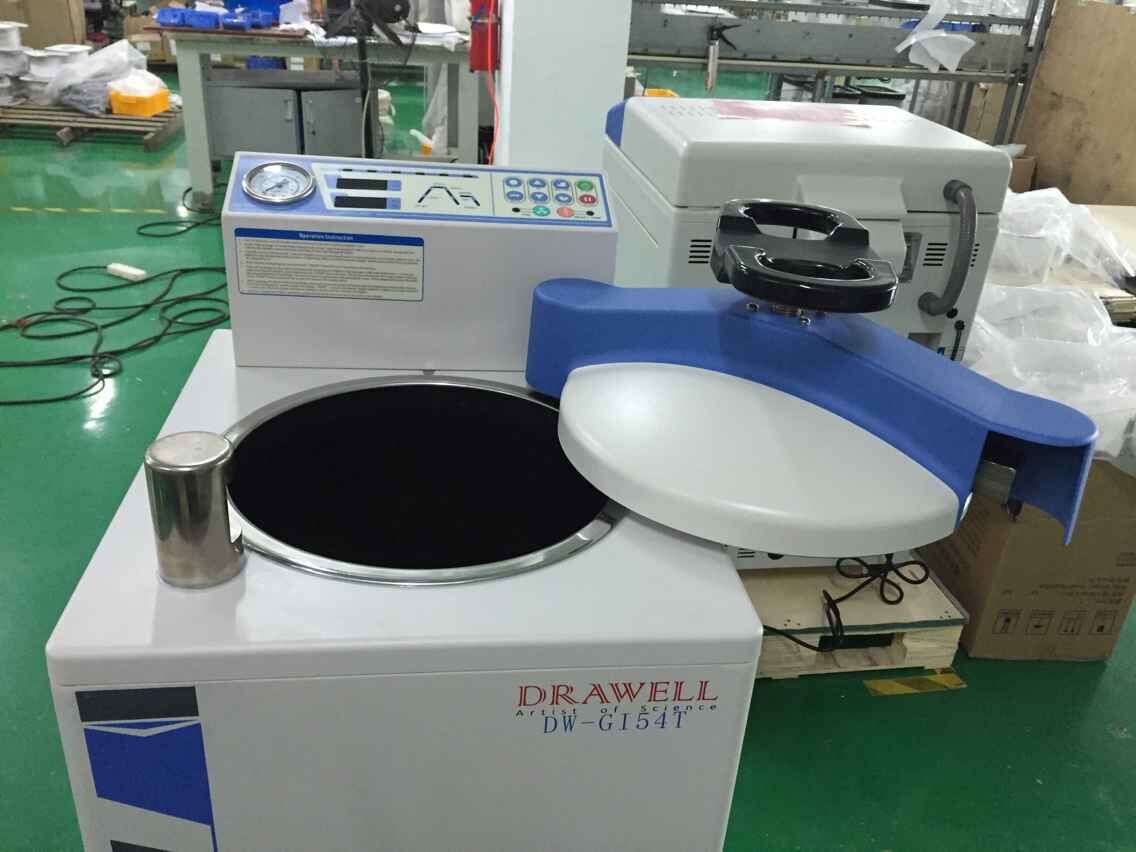

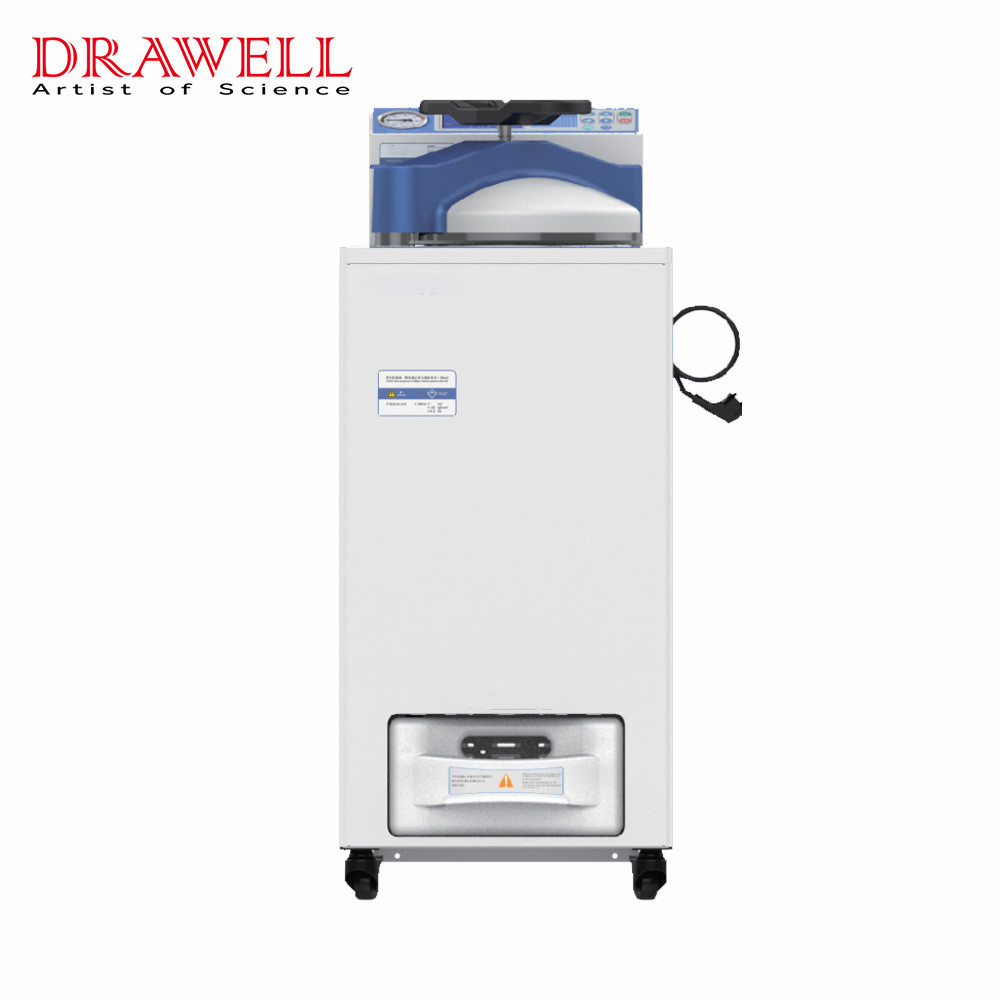

DW-GI Series Vertical Autoclave

Advanced
Colorful LCD screen
LCD screen with English and Chinese choice,using text, data, and graphical methods to dynamically display various statuses, the sterilization process is clear at a glance.
6 level of exhaust speed control(TW,TR,TP only)
After sterilization,you can choose different exhaust speed, and you can adjust it freely at any time of exhausting.
Condenser(Option)
Equipped with a professional condenser, the steam generated during the sterilization process is conve-rted into water through the condenser, achieving zero discharge of water vapor/mist.
F0 value caculation
FO value is automatic caculated, can print out by micro-printer.
Drying(TR only)
Fully automatic drying: Equipped with an air pump and a 0.2um air fiter, it automatically starts drying after sterilization. After sterilization,clean air will be put in to replace the wet air inside, so as to improve drying efficiency.(Fully automatic drying is an option for TR only)
Vacuum pump(TP only)
Original imported vacuum pump from Germany, with good vacuum effect.
Biosafety function (TWS,TRS only)
Use a 0.2 μm PTFE filter packed in a housing to ensure that no biohazard aerosols, microorganisms and viruses are passing out through the filter during exhausting, so as to make sure the biology safety of the lab.
Vacuum drying(TP only)
Set drying temperature and time, and start vacuum drying after sterilization.
5 level access permission
The operation permissions for instruments are divided into five levels, with each level of user
having an independent password and multiple IDs that can be assigned. Each level of user has limited access to certain usage permissions.
Fast cooling fan
To shorten cooling process after sterilization.
Auto water fill(Option)
Offer pipe and pump to connect to the direct water supply to achieve automatic water feeding, must be added while production.
Dedorization(TX only)
A unique odor treatment system that can absorb odors and remove smell generated during the sterilization process, ensuring fresh laboratory air.
Air inlet filter(TX,TP as standard,TR as option)
Filtration is higher than 99.99% in particle with diameter of 0.2 μm.
Monitor of exhaust filter(TWS,TRS only)
Exhaust filter is put inside a pressure resistant housing(stainless steel material) with an extra PT100 temperature sensor to monitor the temperature, so as to make sure the filter and housing are also being sterilized thoroughly,and will not lead to secondary biohazard pollution.
Fully automatic drying(TR only)
Equipped with an air pump and a 0.2um air filter,it automatically starts drying after sterilization. After sterilization, clean air will be put in to replace the wet air inside, so as to improve drying efficiency.
Intelligent
Calibration port
Offer temp.and pressure interface, together with the 3Q adapter joints, can insert max 15 sensors one time to do the calibration work.
Program memory storage system
User can set their own program, and saved in system.
Saturated steam monitoring
The system automatically monitors the purge out of cold air to ensure the pure steam environment.
Special software for drug packaging materials(option)
The product meets the 2020 Chinese Pharmacopoeia or EP10.2 standards.
Hommization
Just right depth
Conforming to ergonomics, the chamber depths of 29/54/80/100L
chamber are 378/725/670/780 (mm),making it easy to take and
place samples and maintain the instrument
Front water tank
Front water tank, easy to plug in and out.(TW/TX only)
Safety Features
Nice look:The lid and bench corners are covered with insulation to avoid getting scald
Inter lock:Only when the temperature and pressure are safe inside, can the door be opened. If the door is not closed in place, it cannot start working.
Double protection for over pressure:Mechanical pressure gauge and electric sensing system, once pressure is abnormal, system will cut power, release the pressure and send out alarm.
Safety test function:Regular testing of system security and safety protection measures is possible.
Electrical production:Prevention for over current,short ciucuit and electricity leakage.
Lid closing check:Machine can not start if lid is not locking well by checking mechanically and electrically.
Triple protection for water shortage:The bottom of the sterilization chamber is equipped with three different dry burning protection devices: liquid expansion type, copper temperature sensing type, and electric ion type(water level sensor), to avoid misjud-gment caused by a single method.
Auto trouble shooting:System will monitor the working status, and will cut the power, send out alarm, and report the error information once any abnormal situation detected.
Temperature monitor:Power cut and alaraming sent, if there is temperature is too high or temperature1ising is abnormal.
Saturated steam monitoring:The system automatically monitors the purge out of cold air to ensure the pure steam environment.
